Moulded Case Circuit Breaker N Series
Moulded Case Circuit Breaker N Series
Product Code : ITC-N-160
Brand Name : ITC

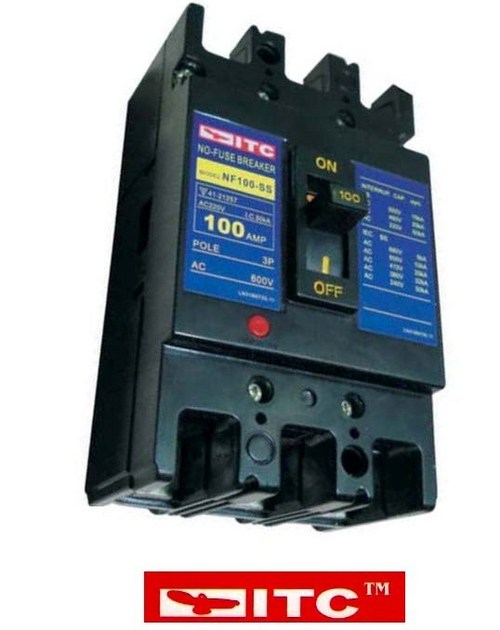

Moulded Case Circuit Breaker N Series
Industrial mouded case circuit breaker(MCCB)
we have N type,M type,and A type type mccb
protech to short circuit & overload power.
It's suitable for short circuit and overload protection in circuits.
| RATED INSULATION VOLTAGE (V) | RATED CURRENT TRIP (A) | MODE OF CONNECTION | ON & OFF CAPACITY kA |
ITC N 30 | 600 V | 3,5,10,15,20,30 | Model after board insertion mode | 5 |
ITC N 50 | 600 V | 10,15,20,30,40,50 | Model after board insertion mode | 10 |
ITC N 60 | 600 V | 10,15,20,30,40,50,60 | Model after board insertion mode | 10 |
ITC N 100 | 600 V | 60,75,100 | Model after board insertion mode | 20 |
ITC N 200 | 600 V | 125,150,175,200,225,250 | Model after board insertion mode | 30 |
ITC N 250 | 600 V | 125,150,175,200,225,250 | Model after board insertion mode | 30 |
ITC N 400 | 600 V | 250,300,350,400 | Model after board insertion mode | 35 |
