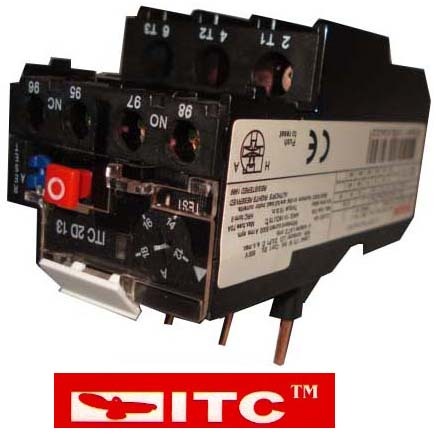

AC CONTACTORS THERMAL OVERLOAD RELAYS
Direct contact to be contactors.we have different range of electrical thermal overload relays.thermal relays are protect to contactors lifer and continue working long time.
Type | Rated working current of thermal relay | Thermal component | ||
Rated current (A) | Rated or scale of rated current(A) | |||
ITC 2D | 25 | 1301 | 0.16 | 0.10-0.16 |
1302 | 0.25 | 0.16-0.25 | ||
1303 | 0.40 | 0.25-0.40 | ||
1304 | 0.63 | 0.40-0.63 | ||
1305 | 1.0 | 0.63-1.0 | ||
1306 | 1.6 | 1.0-1.6 | ||
1307 | 2.5 | 1.6-2.5 | ||
1308 | 4.0 | 2.5-4.0 | ||
1310 | 6.0 | 4.0-6.0 | ||
1312 | 8.0 | 5.5-8.0 | ||
1314 | 10.0 | 7.0-10.0 | ||
1316 | 13.0 | 9.0-13.0 | ||
1321 | 18.0 | 12.0-18.0 | ||
1322 | 28.0 | 17.0-28.0 | ||
ITC 22D | 36 | 1353 | 32 | 23.0-32.0 |
1355 | 40 | 30.0-40.0 | ||
1357 | 50 | 37.0-50.0 | ||
ITC 23D | 93 | 1359 | 65 | 48.0-65.0 |
1361 | 70 | 55.0-70.0 | ||
1363 | 80 | 48.0-80.0 | ||
1365 | 93 | 80.0-93.0 |
